Our fully packaged Treat-Force Sewage system incorporates the following features:
treatment train
- Primary screening using an automatic rotary drum screen
- Secondary treatment using a MLE biological process with a pre-anoxic stage
- Tertiary treatment featuring flat sheet MBR ultrafiltration modules
- UV Sterilisation for optional added disinfection
- Chlorine Dosing to provide residual disinfection.
STANDARD EQUIPMENT
- 2mm punched hole primary screening
- Fine bubble aeration
- 0.04μm ultrafiltration membranes
- Online instrumentation including Flow, Pressure, Dissolved Oxygen, Suspended Solids, pH, Chlorine and Turbidity
- Automatic membrane backwashing and CIP System
KEY SYSTEM FEATURES
- Plug and play packaged system
- Proven and patented design
- Class A treated water suitable for a variety of reuse options
- High spec components and instrumentation as standard
- Upgraded control panel system with advanced remote monitoring
- Improved internal layout for ease of maintenance
- Extended flow rate, now up to 1.5 ML/d
- Updated structural design allowing container stacking for small sites
- Optional sewage temperature management for Alpine applications
- Optional ultra high-performance insulation & chiller systems for extreme Outback applications
- Factory wet tested and approved
- Also available with solar pack
Treat-Force systems are manufactured in Australia in accordance to ISO9001 Manufacturing Standards. All workmanship is completed in accordance with best practice.
Protex Water also carries ISO certification for 14001 Environmental Management and 45001 for OH&S Management.
INSTALLATION

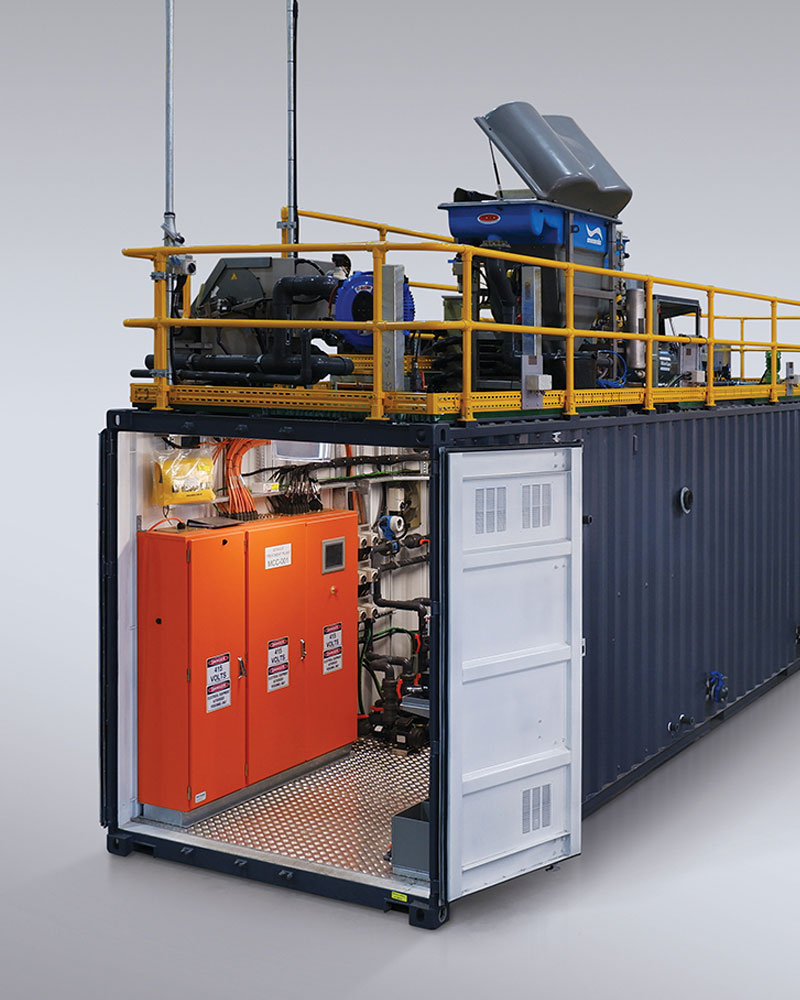

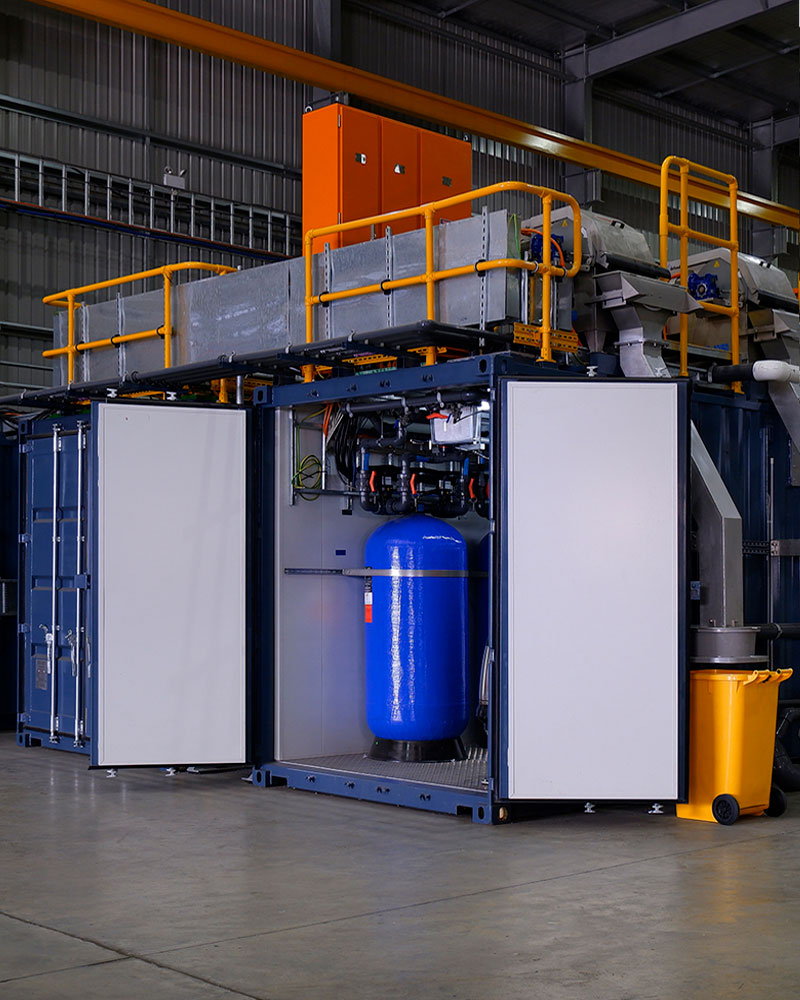

Treat-Force systems are completely packaged plants supplied directly to your site in 20ft or 40ft containers. Having been wet tested prior to dispatch, these system can be installed quickly, depending on the location and existing infrastructure on-site.
COMMISSIONING
Site commissioning is included in our quoted price. Manuals, Operator check list will be submitted to the contractor or purchaser on deliver.
MAINTENANCE
Maintenance of all Treat-Force Plants is simplified via the incorporation of the advanced Activait Plant Automation System, which monitors the systems performance and checks for any anomalies or faults. With full remote monitoring, system levels and operational data can be accessed and managed via any smart device.
